L29 DIN 7-16 matut mahkai ai lam

Na a ningbaw ningla L29 DIN 7-16 matut mahkai ai lam hpe jaw ya ai wa



1989 ning hta hpaw ninghtan ai Zhenjiang Tongda Electronic Co., Ltd. gaw, RF matut mahkai ai jak, nbung laru hpe makawp maga ai jak, RF n-gang, adapter, hte die-cast daw ni hpe hpaji rawng ai hku galaw shapraw ai company langai rai nga ai. 26,680 m2 daram kaba ai shara ni hte rawt jat galu kaba wa ai CNC hte chyam dinglik arung arai ni hte, ISO9001, TS16949, ISO14000 hte RoHS madang ni hpe hkan sa ai -madang tsaw ai arung arai ni hpe anhte jaw ya ga ai. Tongda gaw Dingdung Amerika hte Uropa mungdan ni lawm ai mungkan gat lawk ni hpe daw jau ai rai nna, ningbaw ningla telecom company ni a matu kam hpa mai ai garan gachyan ai wa mung rai nga ai. Anhte gaw hpaji ningnan, ngang grin ai atsam, hte customer- hpe madung tawn ai daw jau ai lam ni hpe madung tawn ai.





Anhte hpe Hpa Majaw Lata Ai Kun?

Mahkrum madup law law

RF connectors hte seng ai arung arai ni hta shaning tsa lam hku mahkrum madup nga ai Tongda gaw, mungkan madang hte maren, kungkyang ai hpaji masa ni, ngang grin ai galaw shapraw ai ladat ni, kam mai ai arung arai ni hpe jaw ya nga ai.

Rawt jat ai arung arai ni

Brother machining center, CNC lathes, hte automated cutting jak ni zawn re ai, n-gun ja ai -htuk manu ai jak 100 daram hte hpawng de da ai rai nna, PIM chyam dinglik jak ni, network analyzer ni, grup yin chyam dinglik nta ni lawm ai, hkum tsup ai chyam dinglik jak ni hpe mung, n-gun ja ai hku hkang lu ai.

N-gun ja ai R&D atsam & hpaji ningnan

Sinpraw Dingda Dakkasu hte Jiangsu Dakkasu ni hte pawng nna, Tongda gaw RF Connector sawk sagawn rung hpe hpaw ninghtan nna, mungdan ting na patent 58 hpe lu la sai, dai hta hpaji hparat hpan shalat ai patent 18 lawm ai, n-gun ja ai hpaji hparat hpaji ningnan ni hpe madun dan ai.

Anhte a magam bungli ni

Anhte gaw -cycle service hpring tup jaw ga ai: Customers ni gaw, order kaw nna sa ya ai du hkra hte dai hta lai nna, shim lum ai matut mahkai lam, lawan ai hku galaw ai lam, kam mai ai karum shingtau lam ni hpe lu la ai.



7-16 DIN Female Waterproof Cap Brass



LAM NI / AKYU NI
  • Ultra high PIM performance ngu ai gaw, n-gun shayawm ya ai majaw, mari ai ni a myit dik lam grai law wa ai.
  • Lahkawng - hkrang shapraw ai lam gaw, shada da matut mahkai ai lam hpe myi hte mu lu ai hku nna, installation shimlam hpe grau kaja hkra galaw ya ai
  • Mated hte unmated masa hta hka n shang hkra pat da ai, ngu ai gaw, install galaw ai shaloi shakut shaja ai lam hpe shayawm ya nna, bungli galaw ai shaloi shimlam hpe grau kaja hkra galaw ya ai
  • Tri metal alloy plating ngu ai gaw grai sawng ai nbung laru hte grup yin masa ni hta pyi n-gun ja ai hpe ninghkap lu ai
  • Multi-thread (Tristart) hkrang shapraw ai lam gaw asan sha hte lawan ai hku n-gun ja hkra galaw ai lam re.





7-16 DIN hte N Connector ni a shai hkat ai lam:







Hkum hkrang galu kaba ai:
7-16 hta lawm ai:Grau kaba nna grau kaba ai, shinggan de na matut mahkai lam (16 mm) hte kata de na matut mahkai lam (7 mm) grau dam ai.

N:Kaji nna grau n-gun ja ai, shinggan de na matut mahkai lam (10.2 mm) hte kata de na matut mahkai lam (3.6 mm) hpe grau kaji ai.




Ga law law lang tsun ai:
7-16 hta lawm ai:7.5 GHz du hkra npu na frequency ni a matu lang ai.

N: GHz du hkra grau tsaw ai frequency ni hpe hparan lu ai.




Power hparan ai lam:
7-16 hta lawm ai:-power kaba lang na matu galaw da ai, 5000 watts du hkra galaw lu ai.

N: N-gun n law ai-power hte n-gun kaba -power lahkawng yan a matu htuk manu ai, raitim, madung hku nna 7-16 DIN zawn n-gun n law ai.




Matut mahkai ladat:
7-16 hta lawm ai:Hkamja lam hte shim lum ai matut mahkai lam a matu threaded coupling hpe lang ai.

N: Lawan ai hte loi ai hku matut mahkai na matu bayonet-style coupling hpe lang ai.




Laika shawk shawn ai lam ni:
7-16 hta lawm ai:Antenna system, cellular network, Microwave matut mahkai lam, satellite matut mahkai lam ni hta law law lang mu lu ai.

N:WLAN, GPS, radar system ni, hte general RF shapoi ai lam ni lawm ai, bungli amyu myu hta grai lang ai.





4.3-10 hte 7/16 Din (L29):4.3-10 与 7/16 Din (L29)

7-16 DIN Male Connector for 1-2 Inch Cable LDF4-50A 716-J1-2

Galu kaba ai, n-gun ja ai hte n-gun hpe shingdaw yu ai

Ndai connector lahkawng a lapran na shai hkat ai lam kaba langai gaw physical size hte install galaw ai shaloi ra ai torque rai nga ai.

7/16 hta lawm ai (L29):Hkum hkrang kaba ai (~29 mm), 25–30 N·m n-gun ra ai. Solid, raitim shara-ra ai.
4.3-10: Hkum hkrang kaji ai (~20 mm), 5–8 N·m daram n-gun n law ai, aten hpe hkye la lu ai hte n-gun grai law ai hpe koi lu ai push-pull coupling hpe lata la mai ai.

Power hparan ai lam & PIM galaw ai lam

7/16 Din (L29)
Grai tsaw ai atsam a matu gawgap da ai. Shi gaw, nsen shapoi ai shara ni hta 1 kW jan pyi, watt latsa daram hpe shim lum ai hku hkang lu ai.
Shi a kaba ai matut mahkai shara ni gaw, n-gun kaba ai n-gun hpe shayawm kau ya nna, matut manoi n-gun kaba ai aten hta bungli galaw ai lam hpe ngang grin hkra galaw ya ai.
PIM a bungli galaw ai lam gaw grai kaja ai—-155 dBc grup yin hta n law ai (sh) maren sha re, n-gun rawng ai torque hte installation galaw ai rai yang.



4.3-10 Matut mahkai ai lam
LTE hte 5G system ni hta lang ai, n-gun lapran kaw nna n-gun kaba a matu galaw da ai. 7/16 DIN a grai kaba ai atsam hte n htap htuk tim, dai ni na aten na base station ni hta lang ai port langai hta 40–100 W hpe loi loi hte galaw lu ai.
Mechanical stability hte kaja dik htum kata/shinggan conductor hkrang shapraw ai lam gaw PIM n-gun n law ai, law malawng -160 dBc hta n law ai (sh) maren sha re.
Shi a n-gun n law ai torque ra ai lam gaw, PIM spikes byin pru wa ai lam langai rai nga ai, n tara ai hku n-gun jat wa na hpe shayawm ya lu ai.

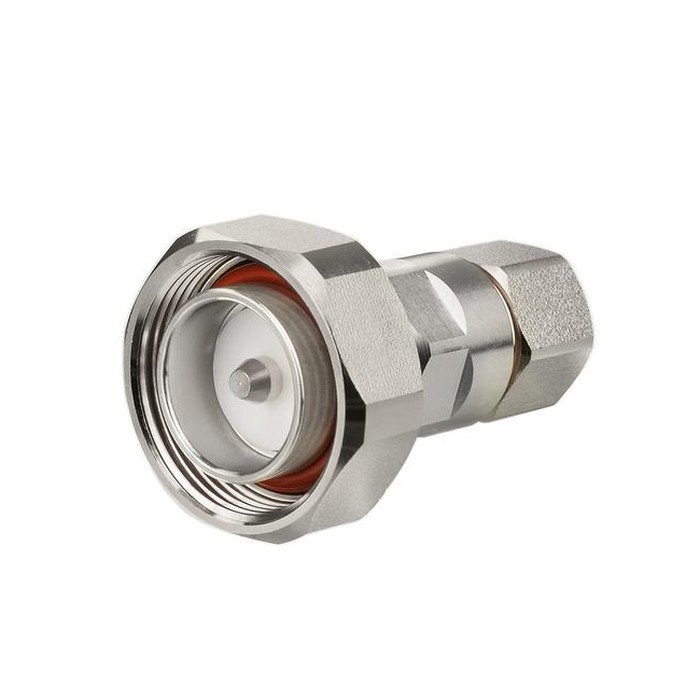

7-16 DIN Male Connector for 1-2 Inch Super Flexible Cable FSJ4-50B 716-J1-2S



Arung arai masat masa ni





N-gun

50Ω

Kalang lang lang ai lam

0-6GHz

Bungli galaw ai Voltage

2700V

VSWR

1.15@2.5GHz hta n law ai (sh) maren sha re, 1.25@6GHz hta n law ai (sh) maren sha re.

Insulation hpe ninghkap lu ai atsam

10000mΩ hta grau kaba ai (sh) maren sha re.

Voltage hpe hkam sharang lu ai

4000V

Ginjaw matut mahkai ninghkap ai lam (mΩ)

0.4 hta n law ai (sh) maren sha re.

Shinggan de hkrat sum ai ninghkap n-gun (mΩ)

1.5 hta n law ai (sh) maren sha re.

RF hka pru ai atsam

125dB@3GHz hta grau kaba ai (sh) maren sha re

Galu kaba ai

500 lang shingjawng ai





Laksan galaw ai ladat





productcate-554-422





Htinggrum & htaw sa ai





productcate-500-400
productcate-500-400





Anhte a Laika





productcate-1-1





FAQ





San: Na a company a MOQ gaw hpa rai ta?

A: Madung hku nna, customer brand lang ai rai yang, anhte gaw n yawm htum 500~800pcs hpyi na re, ndai hpe anhte bawngban mai ai.

San: Na a delivery aten gaw kade rai na kun?

A: Ndai hpe anhte a stock hpe shawng san yu u, na a deposit hpe hkap la ai shaloi, arung arai ni hpe sa dat mai ai.Customer brands ni hpe lang yang, anhte gaw 3-5days aten la nna, arung arai ni hpe hkyen lajang nna, law law lang galaw shapraw na re.

San: Dut ngut ai hpang na service hpe gara hku hparan na kun?

A: Ndai hpe gram lajang chye ai bungli galaw masha ni nga yang hpaji lam hta karum hpyi u.Engineer ni n nga yang, arai ni hpe bai sa ya rit, anhte gaw nang a matu gram lajang ya lu na re.

San: Anhte hpe galaw na matu sample langai mi sa ya lu na kun?

A: Rai sai, mai galaw ai. Sample hpe kalang hpyi ai shaloi sa dat mai ai, raitim sample manu hpyi na re. Sample fee hpe htawm hpang na order hku bai nhtang wa na re.

San: Anhte hpe chyam yu na matu sample sa ya lu na kun?

A: Teng sha re! Anhte a arai ni a quality hpe sample ni hpe order galaw nna chye lu na re.

San: Gara zawn re ai gumhpraw jaw ai aten hpe hkap la ai kun?

A: Paypal, western union, alipay, T/T, gumhpraw dum hta gumhpraw htawt ai, gumhpraw hkoi ai card, GOOGLE_PAY, APPLE_PAY, etc.

San: Hkrang shapraw ai service hpe galaw ya lu ai kun?

A: Rai sai, ODM / OEM galaw mai ai. Customized service ra ai rai yang ngai hpe matut mahkai mai ai.

Q: Product a quality hpe nang kam mai ai kun ?

A: Sure, quality tsaw ai gaw anhte hpe na a company hte hpaga yumga galaw na matu kam hpa myit jaw ya ai. Anhte ra kadawn dik ai gaw aten kadun-hpaji jawm galaw na malai Long-termcooperation rai nga ai.
